| Razor Blade Specification |
| Reference Number |
Blade Style |
Thickness |
Wire Dia |
Barb
Length |
Barb
Width |
Barb
spacing |
| BTO-10 |
 |
0.5±0.05 |
2.5±0.1 |
12±1 |
13±1 |
26±1 |
| BTO-12 |
 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
| BTO-18 |
|
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
| BTO-22 |
 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
| BTO-28 |
 |
0.5±0.05 |
2.5±0.1 |
28±1 |
15±1 |
34±1 |
| BTO-30 |
 |
0.5±0.05 |
2.5±0.1 |
30±1 |
18±1 |
34±1 |
| CBT-60 |
 |
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
96±2 |
| CBT-65 |
 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |

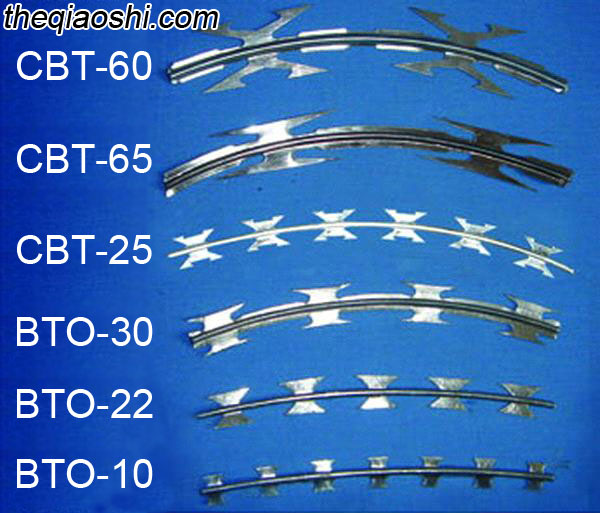

Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard styles products are shown in the tables above, special specifications are available on request
| Barbed Tape Wire Specification |
| Loop Outside Diameter |
No. of Loops |
Standard Length per Coil |
Type |
Notes |
| 450mm |
33 |
7-8M |
CBT-60.65 |
Single coil |
| 500mm |
56 |
12-13M |
CBT-60.65 |
Single coil |
| 700mm |
56 |
13-14M |
CBT-60.65 |
Single coil |
| 960mm |
56 |
14-15M |
CBT-60.65 |
Single coil |
| 450mm |
56 |
8-9m(3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
| 500mm |
56 |
9-10M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
| 600mm |
56 |
10-11M(3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
| 600mm |
56 |
8-10M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
| 700mm |
56 |
10-12M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
| 800mm |
56 |
11-13M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
| 900mm |
56 |
12-14M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
| 960mm |
56 |
13-15M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
| 980mm |
56 |
14-16M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
Notes:
Standard products styles are shown in the tables above, special specifications are available on request.
Standard materials are either galvanized or stainless steel.
In addition to these products, we also manufacture machines which produce them.
